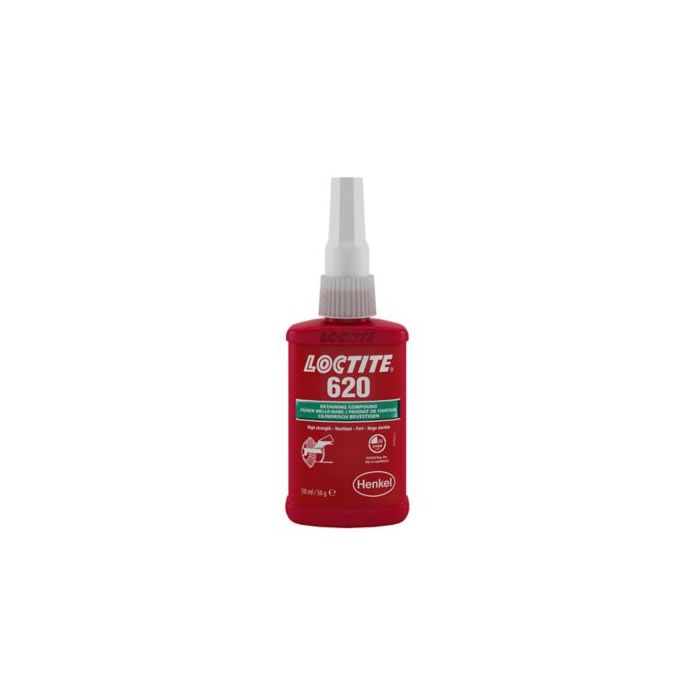

LOCTITE 620, 50 ml Bottle
ID: 234779
A 1-part anaerobic-curing retaining compound designed for bonding cylindrical fitting parts, particularly where high strength with high temperature resistance is required.
- Ideal for shafts, gears, pulleys and similar cylindrical parts
- Operating temperature: -55°C to 230°C (-65°F to 450°F)
€50.67
In stock
Technical and safety documents
When it comes to bonding locating pins in radiator assemblies, sleeves in pump housings and bearings in auto transmissions – especially when you need high temperature resistance up to 232°C (450°F) – LOCTITE® 620 is a good choice. This high-strength, anaerobic-curing retaining compound is designed for bonding cylindrical fitting parts to prevent loosening and leakage due to shock and vibration. It cures when confined in the absence of air between close-fitting metal surfaces, and can fill gaps from 0.15 mm–0.25 mm (0.006"–0.01").
| Recommended for use with | Metal: steel |
|---|---|
| Fixture time | 60.0 min. |
| Key characteristics | Strength: medium to high strength, Gap filling, Viscosity: high viscosity, Temperature: high temperature, Cure speed: slow cure |
| Colour | Green |
| Agency approvals / certificates / specifications | DVGW (EN 751-1): NG-5146AR0622 |
| Applications | For high temperature applications, For slip fitted parts, Retaining |
| Technology | Acrylic |
| Physical form | Liquid |
| Application method | Dispense system, Manual |
| Cure type | Anaerobic cure |
| Gap fill | 0.15 mm - 0.25 mm |
| Operating temperature | -55.0 °C - 230.0 °C ( -65.0 °F - 450.0 °F ) |
| Viscosity | 8000.0 mPa·s (cP) |
| Shear strength, Steel | 26.0 N/mm² ( 3800.0 psi ) |
| Status | In Stock |
